Garmin
£1,899.99
Earn 9499 points with this purchase

The Best of the Best Just Got Better

- See images clearly with improved screen clarity, transducer sensitivity and target separation
- Scan surroundings with sharper images, reduced noise and fewer sonar artifacts
- Get maximum contrast and clarity in images with vivid colour palettes
- Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount

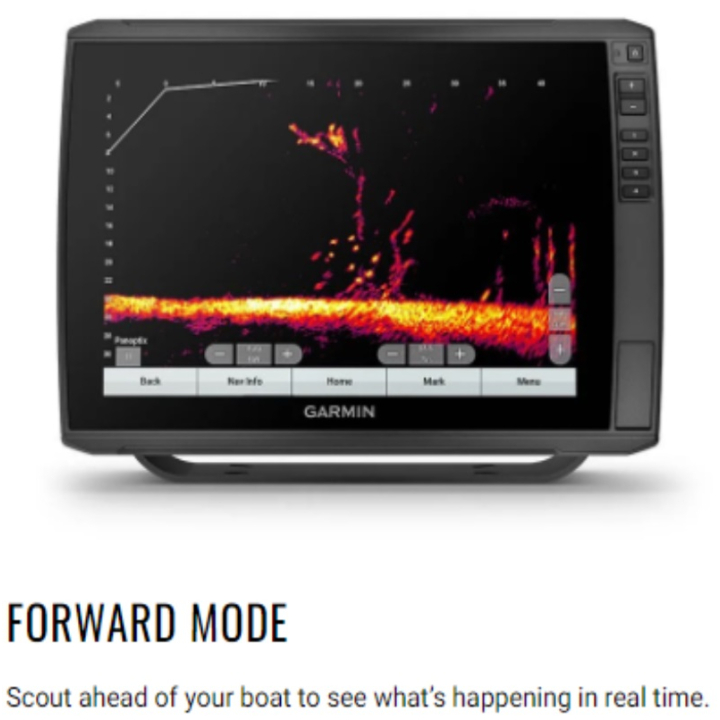

Forward Mode: Scout ahead of the boat to see what’s happening in real time

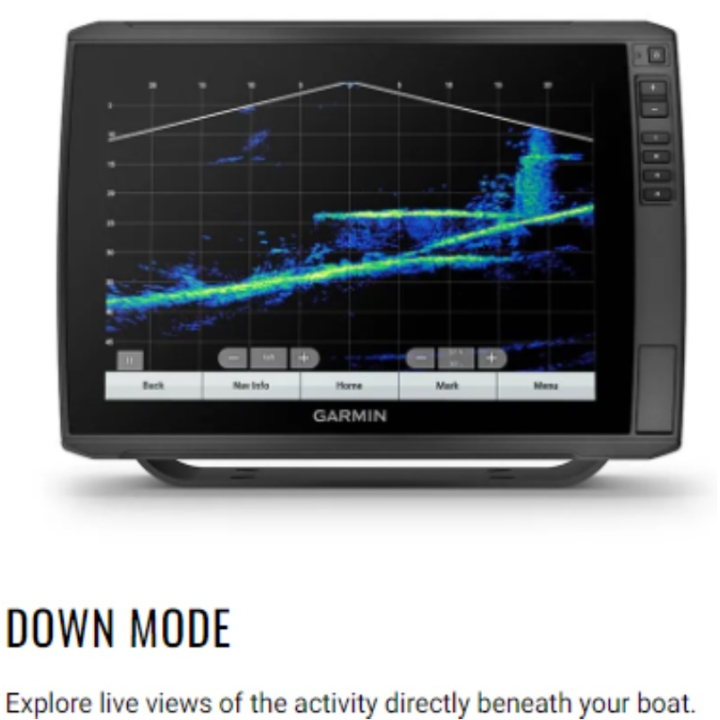

Down Mode: Explore live views of the activity directly beneath the boat

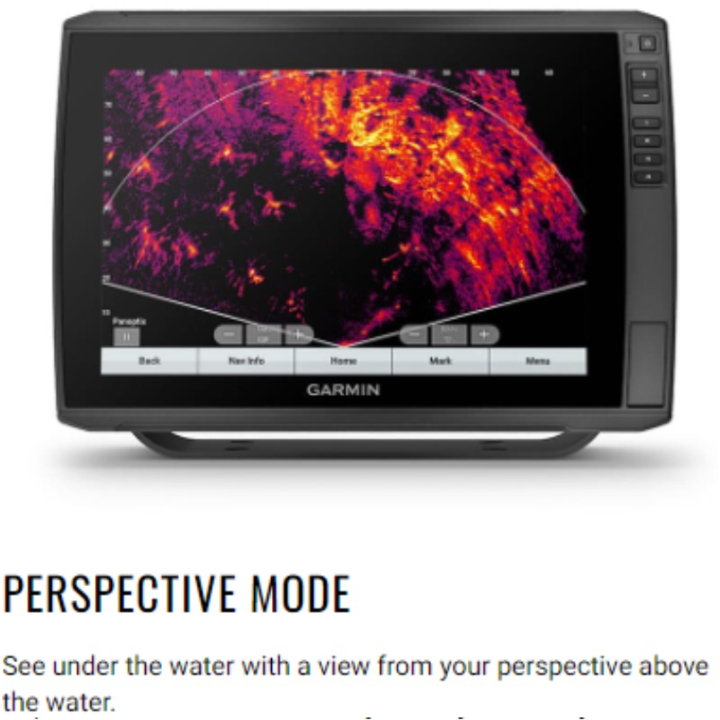

Perspective Mode: See under the water with a view from the perspective above the water

In stock
Free UK delivery when you spend £50
Share
Earn 9,499 loyalty points with this purchase
Free Click & Collect In stock

Collect from either store — usually ready the same day:

  • Armagh Store (Procastangling) · Armagh
  • Newry Store (Newryanglingcentre) · Newry

Choose your store & time slot at checkout.

  • Order within 9h for same-day dispatch
  • Free UK delivery over £50
  • Free 30-day returns
  • Secure checkout
  • Free Click & Collect

Description

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation
Image Definition Never Seen Before

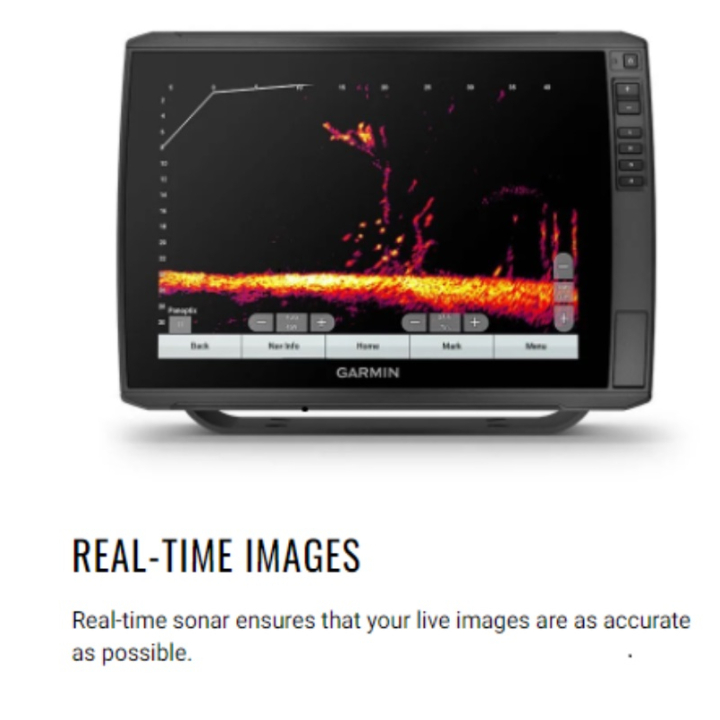

Real-Time Images: Real-time sonar ensures that live images are as accurate as possible

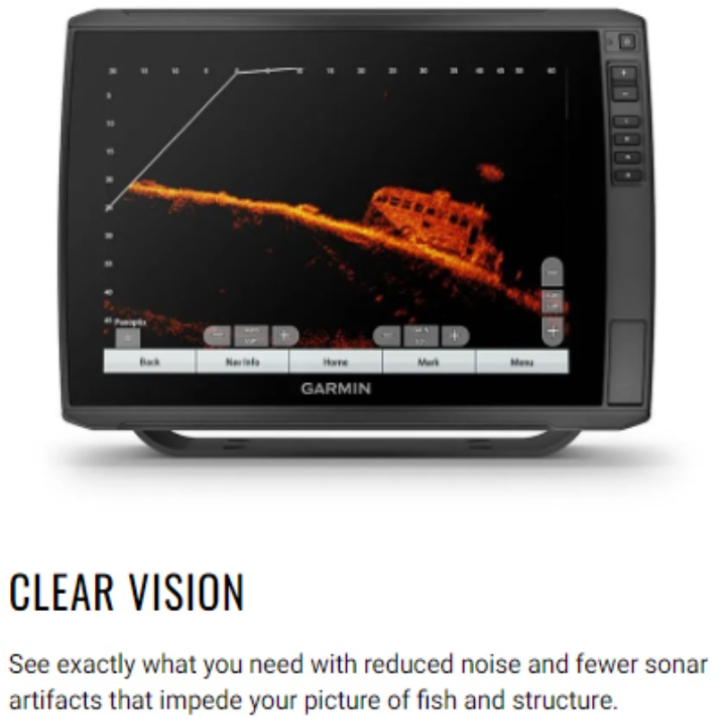

Clear Vision: See exactly what is needed with reduced noise and fewer sonar artifacts that impede the picture of fish and structure

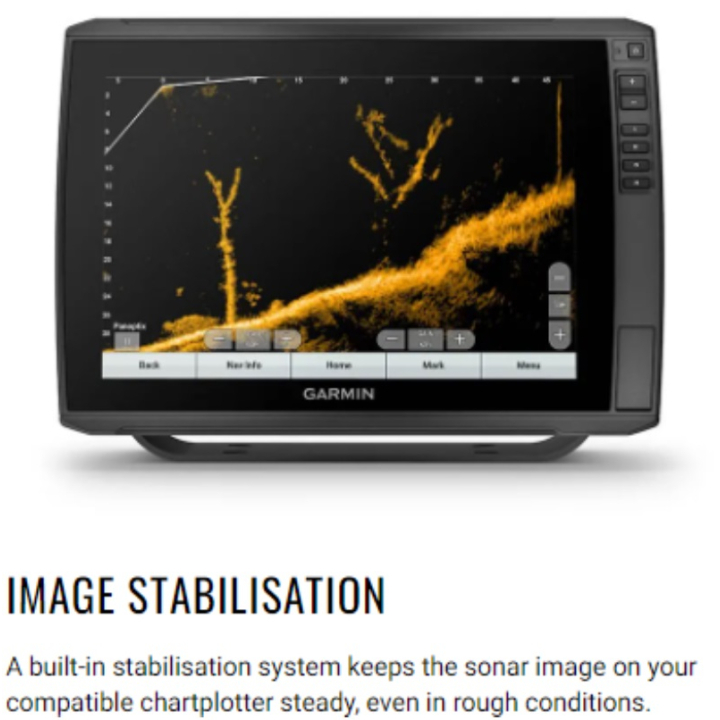

Image Stabilisation: A built-in stabilisation system keeps the sonar image on the compatible chartplotter steady, even in rough conditions

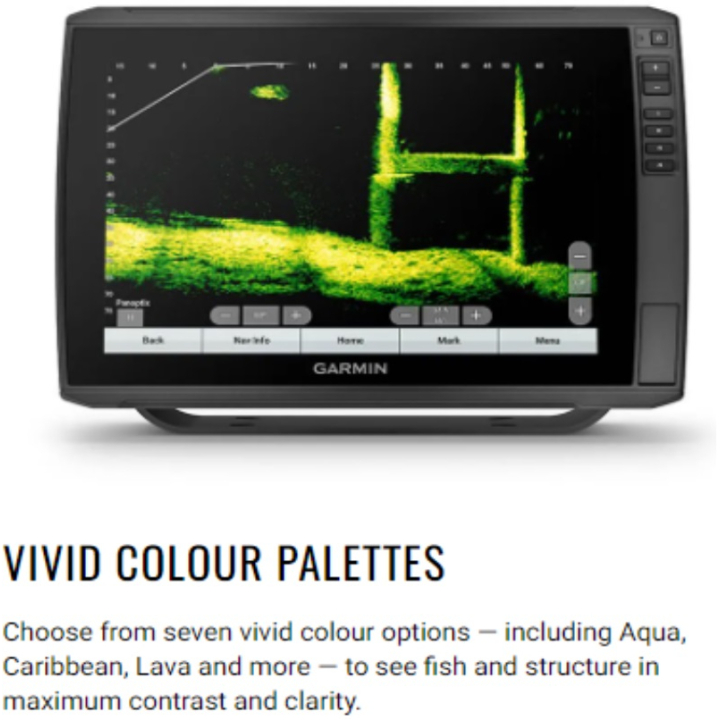

Vivid Colour Palettes: Choose from seven vivid colour options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity
Dimensions: 6.4” x 3.1” x 1.9” (16.2 x 3.1 x 4.8 cm)
Weight: 2.25 lbs (1.02 kg)
Water Rating: IPX7
Frequency: 530 - 1,100 kHz
Max Depth: Down and Forward: 200’ (61.0 m)
Garmin Marine Network Ports: 1 (small connector)
Power Input: 10-32 V
Power Usage: 21 W typical, 58 W max
Transmit Power: 500 W
Fuse: 7.5 A
Compass Safe Distance: 4" (0.1 m)
Minimum depth: 3' (0.91 m)
Sonar type: Live
Beamwidth: 20° x 135°
Transducer cable length:20 ft
Transducer number of pins: 21
